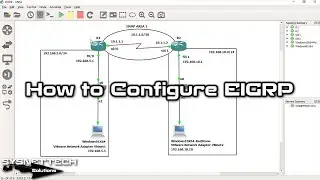

How to Configure EIGRP on Cisco Router in GNS3 | SYSNETTECH Solutions

Опубликовано: 01 Октябрь 2024
на канале: SYSNETTECH Solutions
1,936
35

This video shows you the steps to configure EIGRP routing on Cisco Routers using the GNS3 network simulator program.

✅ S U B S C R I B E ► http://goo.gl/8d0iG9
✅ Article ► https://www.sysnettechsolutions.com/e...

To configure the #EIGRP Routing:

Step 1: If you have not installed #GNS3 before, please refer to the following videos to install it on Windows, Linux, and macOS.

Windows ➦    • How to Install GNS3 2.1 on Windows 10...
Linux/Ubuntu ➦    • How to Install GNS3 2.1 on Ubuntu | S...
macOS ➦    • How to Install GNS3 on macOS High Sie...

Step 2: After installing the simulator software on your system, add 2 Cisco Routers, Cisco Switches, and Cloud PCs to the GNS3 workspace for EIGRP configuration.

Step 3: If you do not know how to configure Cloud PC on GNS3, please refer to the following video or article.

Article ➦ https://www.sysnettechsolutions.com/e...
Video ➦    • How to Configure Cloud in GNS3 | How ...

Step 4: It is useful to use the Cloud PC. You can use Cloud PCs by integrating VMware with GNS3.

Step 5: Add Serial Interface to Cisco Routers. Configure the connection between the Routers using Serial cable, and finally configure the IP configuration of the Serial Interface.

Step 6: Assign IP addresses to the FastEthernet interfaces of Routers.

Step 7: Connect Switches to Routers and power on all network devices.

Step 8: Define IP blocks on the network topology before configuring the routing.

Step 9: Apply the following commands to enable EIGRP.

R1# conf t
R1(config)# router eigrp 1
R1(config-router)# network 10.1.1.0 0.0.0.3
R1(config-router)# network 192.168.5.0 0.0.0.255
R1(config-router)# end

R2 # conf t
R2(config)# router eigrp 1
R2(config-router)# network 10.1.1.0 0.0.0.3
R2(config-router)# network 192.168.10.0 0.0.0.255
R2(config-router)# end

Step 10: Do not forget to subscribe to our YouTube channel for more videos on Cisco networking with GNS3!
