ESP8266 Programming In Arduino IDE

Опубликовано: 31 Март 2025
на канале: Superb Tech

2,277

today i will show you how to upload code to the esp8266 microcontroller using the arduino IDE

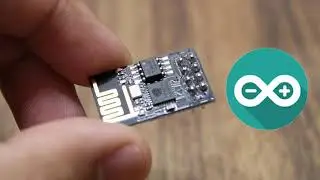

the one which im using is the esp8266 01

this is a 32 bit microcontroller with a clock speed of 80 mhz, 1mb flash memory and built in wifi, which means that this tiny microcontroller is much faster than an arduino uno. it features 2 gpio pins, rx tx pins for communication, chip enable
and reset pins, and vcc and ground pins.

now to program this module, we can do it either using an arduino, or a usb to serial adapter like this one.

im using this FTDI USB to serial adapter
the esp8266 01 is not a breadboard friendly module, it is best to use male to female jumber wires

the wiring is as follows:

connect vcc and chip enable of the esp to 3.3v of the adapter
connect ground of esp and gpio 0 to ground of the adapter
connect rx to tx and tx to rx

make sure you place the voltage jumper to 3.3v on the serial adapter, as the esp works only on 3.3v logic
once the wiring is done, lets do the programming

first open the arduino IDE, go to preferences, and copy this URL in the additional boards manager URL

http://arduino.esp8266.com/stable/pac...

then go to tools board manager and search and install esp8266, which in my case is already installed

go to examples, esp8266, blink

select board as generic esp8266 module
select com port and upload the code
while uploading you will see the blue light flashing on the esp8266

once uploading is done, remove the GPIO 0 pin and leave it unconnected

connect an LED to GPIO 2 and ground, and if everything went good, the LED should start blinking
