DSG DQ200 oil change Audi A3 / Skoda / VW in mechanical and mechatronics
To change the oil in the DGS7 DQ200 robotic gearbox, you will need the following tool:
End heads for 10, 13, 16
Hex H10, H5
Torx T30
A tube with a diameter of 7-8mm, a syringe
Torque wrench
=========================
Spare Parts:
VAG G004000M2 - 1 piece - hydraulic liquid in Mechatronics
VAG G055512A2 - 2pcs - transmission oil
VAG N10037105 - 1pc - pallet stopper
VAG N90414203 - 2pcs - Mechatronics plugs
It is recommended to change the oil every 40000-60000 km.
=========================
The DGS7 DQ200 gearbox was installed on a large VAG line: Audi A1 / A3 / Q3, Skoda Ovtavia / Superb / Yeti / Fabia, Volkswagen Golf / Polo / Passat, etc.
=========================
To change the oil, you need to remove the air filter housing, battery, battery pad, starter.
Tightening torques of plugs:
Large plug N10037105 in the mechanical part - 30Nm
Two small plugs in mechatronics N90414203 - 5Nm + 90 degree rotation.
=========================
Timecodes:
0:00 Spare Parts
0:59 Removing the air filter housing
2:56 Removing the battery and pad
5:30 Removing the starter
9:22 Old butter drain
13:15 Pour new oil into the mechanical part

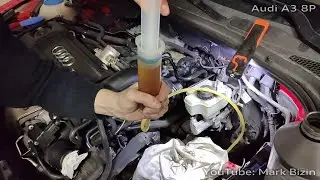

15:12 Pour new oil into the mechatronic
=========================
