TQC GRINDOMETERS

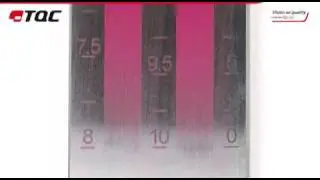

The TQC Grindometers or Fineness of Grind Gauges are precision instruments to determine particle size and fineness of many materials like paints, lacquers, pigments, filler, chocolate etc.. Most TQC Grindometers have double grooves with graded slopes graduated in three different parameters: µm (microns), NS (Hegman) and PCU (North). Gauge and beveled scraper are made of hardened stainless steel and have an accuracy of 2 µm.
Complies with:
ASTM D 1210, ASTM D 1316, JIS K 5600-2-5, ISO 1524, DIN EN 21524, BS 3900-C6
Dimensions:
The base: 175x60x12mm with 120mm groove length
The scraper: 75x38x8mm shaped to be hold easily.
VF2110
TQC Grindometer FM15/2 DIN-ISO
Range: 0-15 µm (micron), 10-8.5 PCU (North), 8-6.8 NS (Hegman)
Graduation: 1.5 µm (micron)
Double groove
VF2111
TQC Grindometer FM25/2 DIN-ISO
Range: 0-25 µm (micron), 10-7.5 PCU (North), 8-6 NS (Hegman)
Graduation: 2.5 µm (micron)
Double groove
VF2112
TQC Grindometer FM50/2 DIN-ISO
Range: 0-50 µm (micron), 10-5 PCU (North), 8-4 NS (Hegman)
Graduation: 5 µm (micron)
Double groove
VF2113
TQC Grindometer FM100/2 DIN-ISO
Range: 0-100 µm (micron), 10-0 PCU (North), 8-0 NS (Hegman)
Graduation: 10 µm (micron)
Double groove
VF2108
TQC Grindometer FM100/1 DIN-ISO
Range: 0-100 µm (micron), 10-0 PCU (north), 8-0 NS (Hegman)
Graduation: 10 µm (micron)
Single groove
