Basic & Easy How to draw a roof plan in AutoCAD Tutorial - Hip Roof Plan Part 1

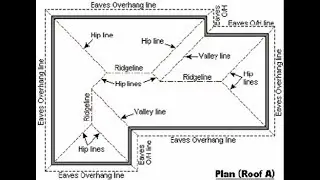

In this tutorial I will explain how to draw and draft a hip roof plan. I use AutoCAD to do this, but you can use any 2D drafting package, or even pen or pencil to follow along to how I work out a roof plan.
Roof plans can be confusing, especially when there are many hips and valleys. I plan to do a series of roof plans to explain how to approach and solve complex roof plans.
You can download the files for this tutorial from my website here:
http://www.thirdistudio.com.au/AutoCA...
~-~~-~~~-~~-~
Please watch: "Basic & Easy How to Draw Truss Hip Roof Layout Plan"
• Basic & Easy How to draw roof truss plan
~-~~-~~~-~~-~
